Silicon wafer

Category:

Silicon Wafer

General description:

Product Message

Product Parameter

N/P Type

Wafer Size

Wafer Thickness/μm

TTV/μm

Saw Mark/μm

Resistivity

MCLT/μs

Oxygen Content/ppma

Carbon Content/ppma

P

182.2*182.2

150±10

≤25

≤12.5

0.4-1.1

≥70

≤13

≤1

P

182*183.75

150±8

≤25

≤12.5

0.4-1.1

≥100

≤15

≤1

N

182.2*183.75

130±8

≤20

≤12.5

0.6-1.6

≥1000

≤11

≤1

N

182.2*182.2

130±8

≤20

≤12.5

0.6-1.6

≥1000

≤11

≤1

N

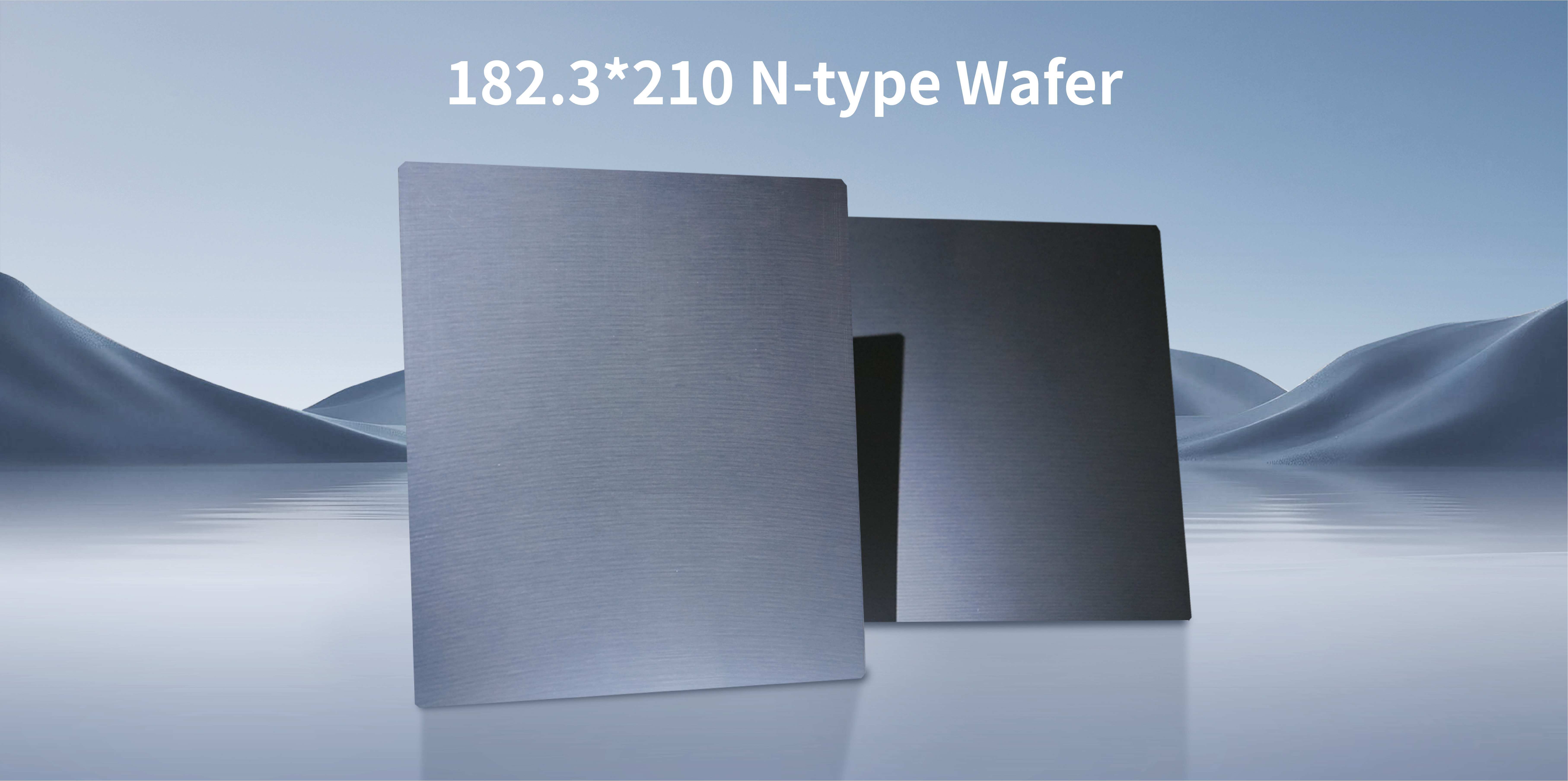

182.3*210

130±8

≤20

≤12.5

0.6-1.6

≥1000

≤11

≤1

N

210*210

130±8

≤20

≤12.5

0.6-1.6

≥1000

≤11

≤1

N

210*105

110+15/-10

≤25

≤12.5

0.3-2.1

≥1000

≤14

≤1

N

182.3*105

130±10

≤25

≤12.5

0.4-1.6

≥4000

≤13

≤1

Note:Silicon wafers can be customized in terms of resistivity and visual parameters to meet customer requirements.
