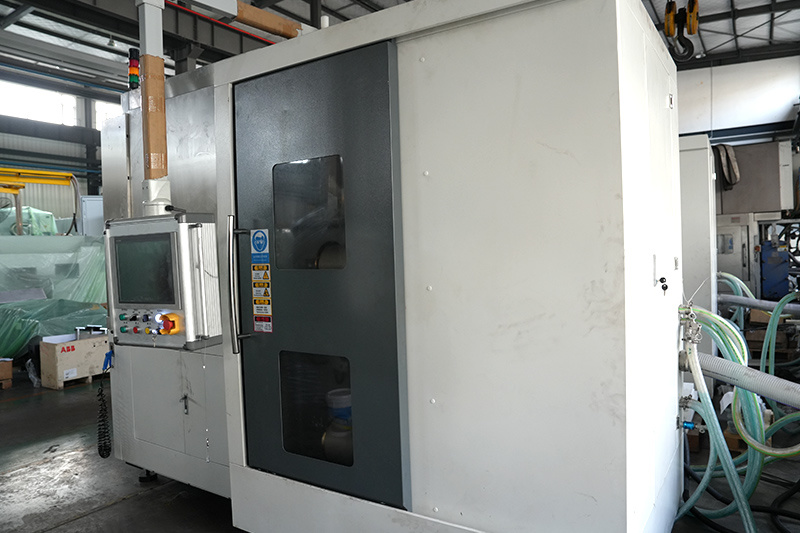

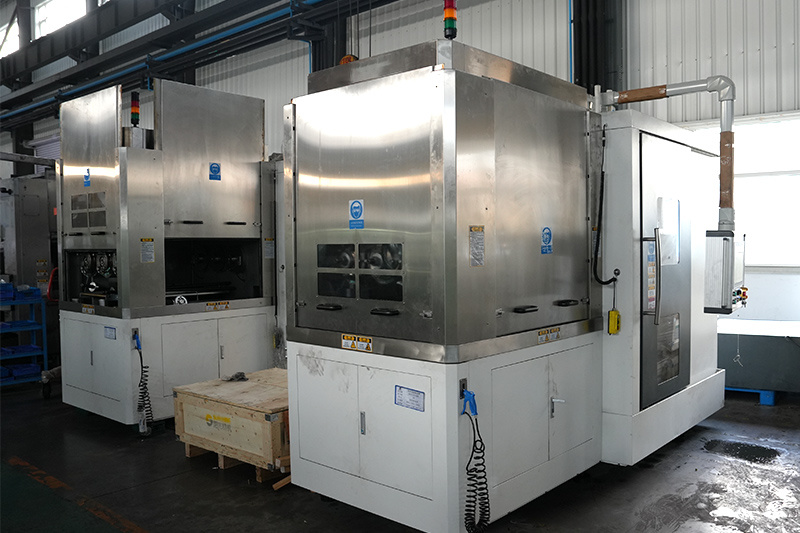

GC-MADW1880

Magnetic Thick-sheet & Straight-sheet Multi-wire Slicing Machine

Category:

Magnetic Materials Cutting Equipment

General description:

With diamond wire, the multi-wire thick-sheet & straight-sheet slicing machine can cut the magnetic materials into slices, where, multiple cutters can perform cutting at the same time, with reliable function, high processing precision and good surface quality.

Product Message

Product Parameter

S.N.	Item	Unit	Content
1	Max. Processing Size	mm	180 (W) x 800 (L) x 150 (H) x double stations
2	Wafer Thickness	mm	1.5～20
3	Max. Wire Speed	m/min	Max. 2000, stable cutting at 1800
4	Cutting Method		Vertical upward feed/cutting
5	Cutting Speed	mm/min	0.1～9
6	Max. Wire Reserve	km	30(0.20 Diamond wire); 50 (0.12 Diamond wire);
7	Dimensions (L×W×H)	mm	Approx. 3500×2150×3000
8	Equipment Weight	ton	Approx. 10
9	No-load Running Noise	dB(A)	≤80 (Test conditions: measure at the front panel 1m away from the equipment and 1m off the ground at 1800m/min wire speed)
